Bresser Researcher LCD mikroszkóp

A digital microscope easily brings the microcosmos up on the screen. For a long time, these instruments were common only in the beginner’s range. Now, the successful and proven Researcher series makes the step into the digital microscopy world and offers new options for microscopy in schools, for hobby or work. The optics and mechanics is the same as already well estabished in the Researcher Bino and Researcher Trino microscopes. Incuding 4 DIN objectives, Abbe condenser, coaxial fine focus and crosstable, the Researcher LCD is suitable for use in the microscopy hobby as well as in teaching or other work related applications. The highest magnification when using the 60x objective (compares to 600x on non digital microscopes) is high enough to view small microorganisms as microalgae, flagellates and bacteria. Other magnifications (20x, 100x oil) can be added later. The Researcher LCD is also compatible with our plan-achromatic objectives designed for 160mm optical tube length.

The integrated, modern Sony camerasensor IMX206 with 16MP gives a brilliant image with good contrast on the monitor. The user can change settings and capture images and video conveniently with the touch screen. Images with 16MP and Full HD video can be stored directly on SD card (SD card not supplied). The microscope also has a HDMI connection, so the image is easily shown on a big monitor, TV, beamer or smartboard. The results can be shared with a bigger audience in lectures or teaching.

Key features:

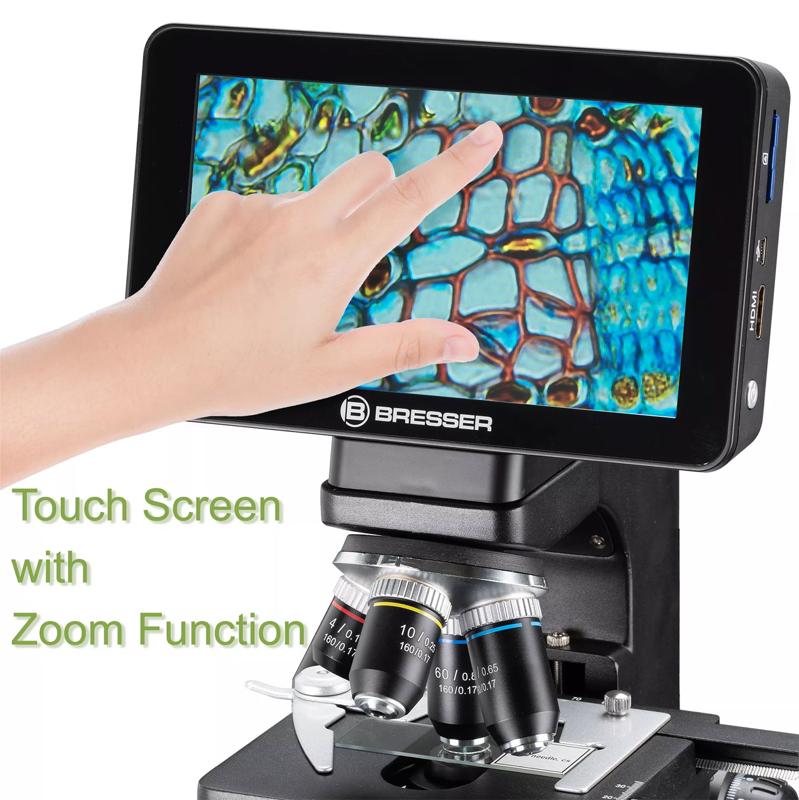

• Digital microscope with integrated 7’’ touchscreen
• 4 achromatic DIN objectives (RMS thread connection), parfocal length 45mm
• Objective magnifications of 4x, 10x, 40x, 60x (40x and 60x with specimen protection)
• Abbe condenser with iris diaphragm, fully adjustable and height adjustable
• High-contrast screen with natural colours, 1024x600px resolution
• Integrated Sony IMX206 camera sensor with 16MP
• HDMI port for connection to an external monitor
• SD card slot (supports up to 32GB, not included)
• USB port (for data transfer to SD card)

The kit includes:

• Researcher LCD digital microscope
• Set of 5 prepared slides and 5 blank slides

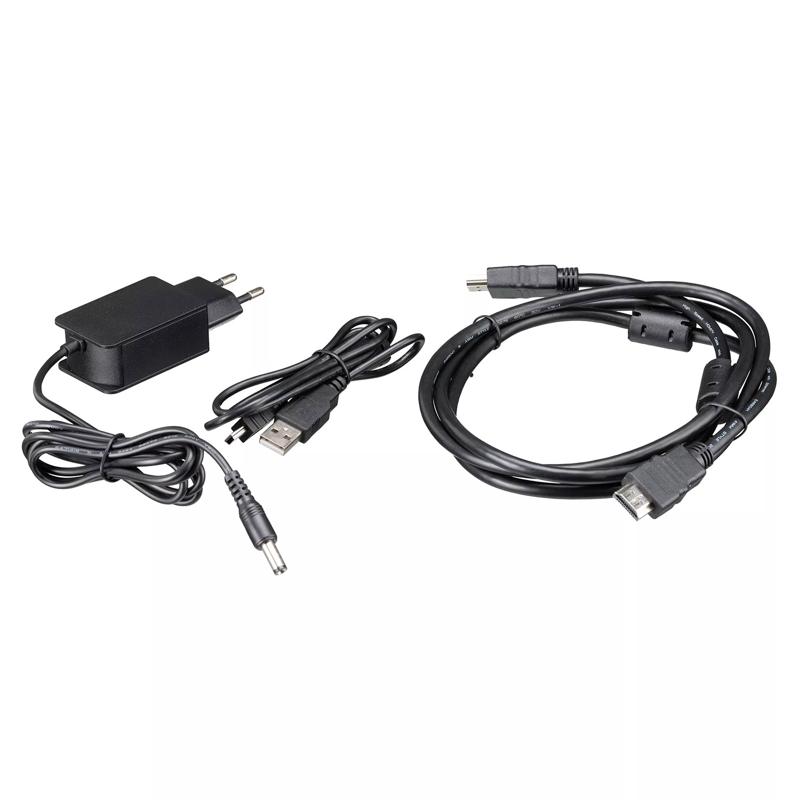

• Power adapter (EU) 5V 2A
• HDMI cable
• USB cable for transferring stored data to a PC
• Dust cover
